MCP servers - Ona Documentation

Model Context Protocol (MCP) extends Ona Agent with external tools like GitHub, Linear, and browser automation. MCP servers run as separate processes in your environment and communicate over stdio or HTTP. There are two ways to add MCP servers to Ona:

Custom organization integrations: Administrators add HTTP MCP servers from the dashboard so everyone in the organization can use them. OAuth is set up automatically via Dynamic Client Registration, or manually with a client ID and secret.
Repo-local configuration: Developers commit .ona/mcp-config.json to a repository to configure servers per project. Supports both stdio and HTTP transports, and lets you inject secrets at runtime.

Custom organization MCP integrations

Administrators can add custom MCP servers to an organization from the dashboard. Custom integrations use HTTP transport and OAuth. You can set up OAuth in one of two ways:

Automatic (DCR): Ona registers itself with the MCP server using Dynamic Client Registration (DCR), with no pre-shared client ID or secret. Requires the MCP server to expose a DCR endpoint.
Manual: You register Ona with your OAuth provider and supply a client ID and secret. Use this when the MCP server does not support DCR.

Use custom integrations when you want to make an MCP server available to everyone in the organization without each developer configuring it locally.

OAuth setup

Before adding an integration, decide how Ona authenticates with the MCP server. You’ll choose one of these modes in the create dialog.

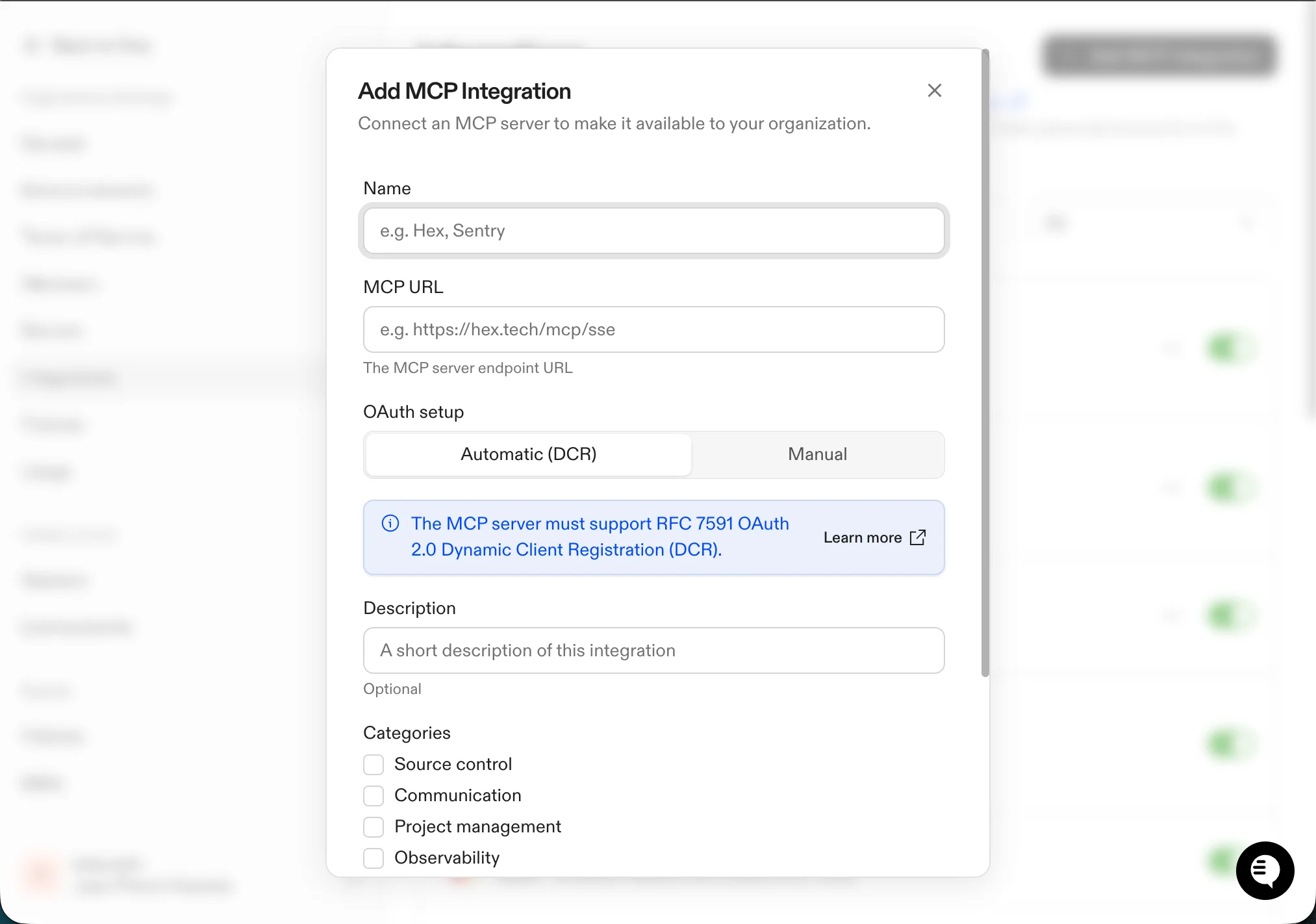

Automatic (DCR)

The default. The MCP server must support RFC 7591 OAuth 2.0 Dynamic Client Registration. Ona registers itself with the server automatically on first use — no further configuration is required.

Manual

Use this when the MCP server does not support DCR. You register Ona with the OAuth provider yourself and provide the resulting credentials:

Callback URL: Copy this value and register it as the redirect URI in your OAuth provider before saving.
Client ID: The client ID issued by your OAuth provider.
Client secret: The client secret issued by your OAuth provider.
Authorization URL (optional): The OAuth authorization endpoint. Auto-discovered from the MCP server’s RFC 8414 metadata if left blank.
Token URL (optional): The OAuth token endpoint. Auto-discovered if left blank.
Scopes (optional): OAuth scopes to request, separated by newlines, spaces, or commas. Auto-discovered when the authorization URL is left blank.

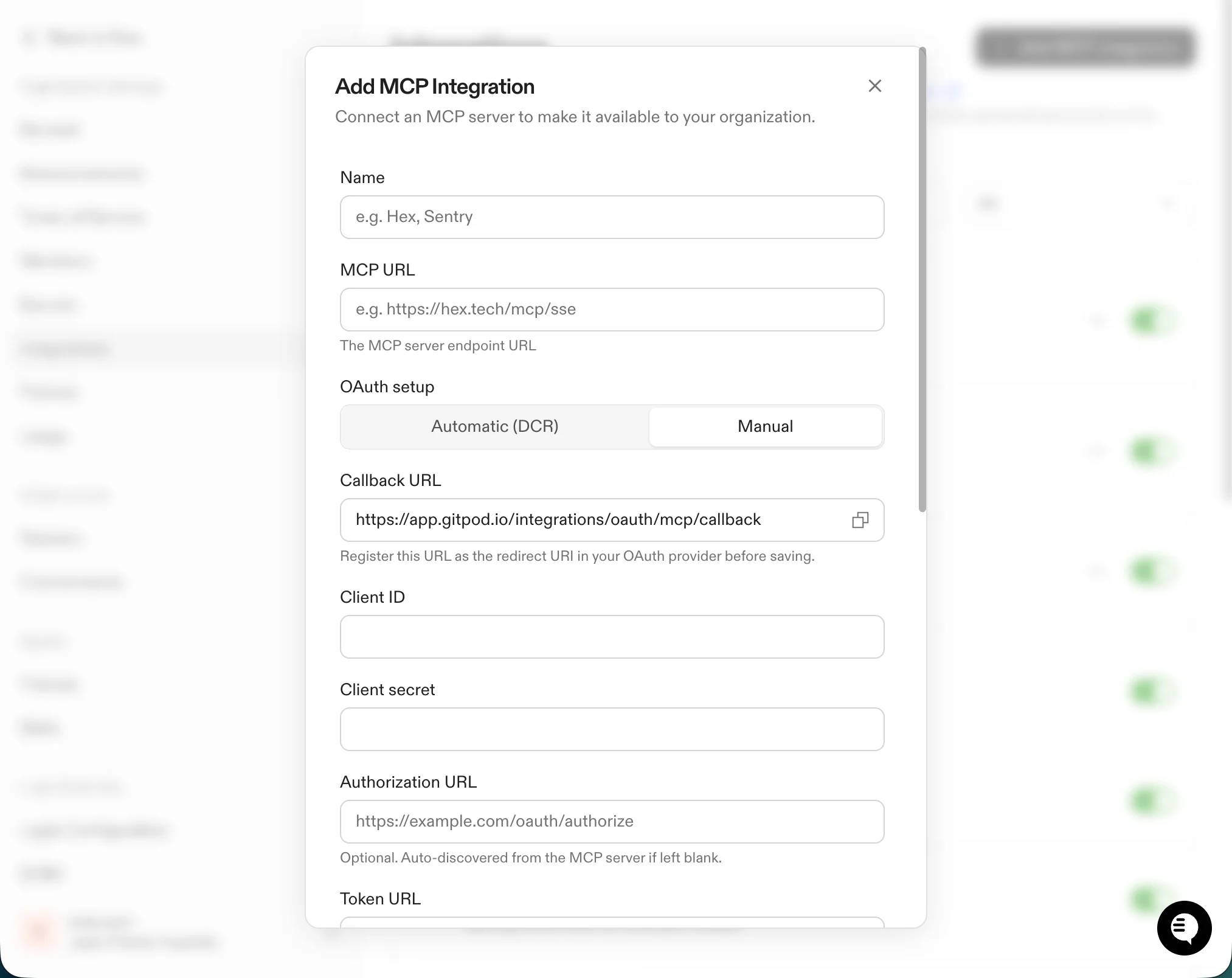

Add MCP Integration dialog with Manual OAuth setup selected, showing Callback URL, Client ID, and Client secret fields

Add a custom integration

Go to Settings > Integrations
Click Add MCP Integration

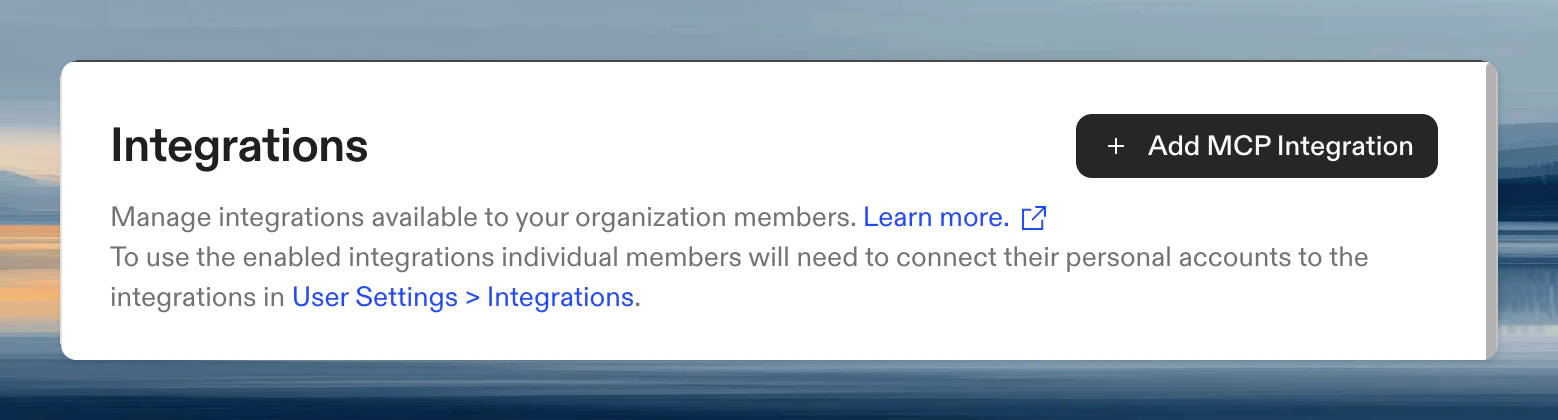

Organization integrations page showing the Add MCP Integration button in the page header

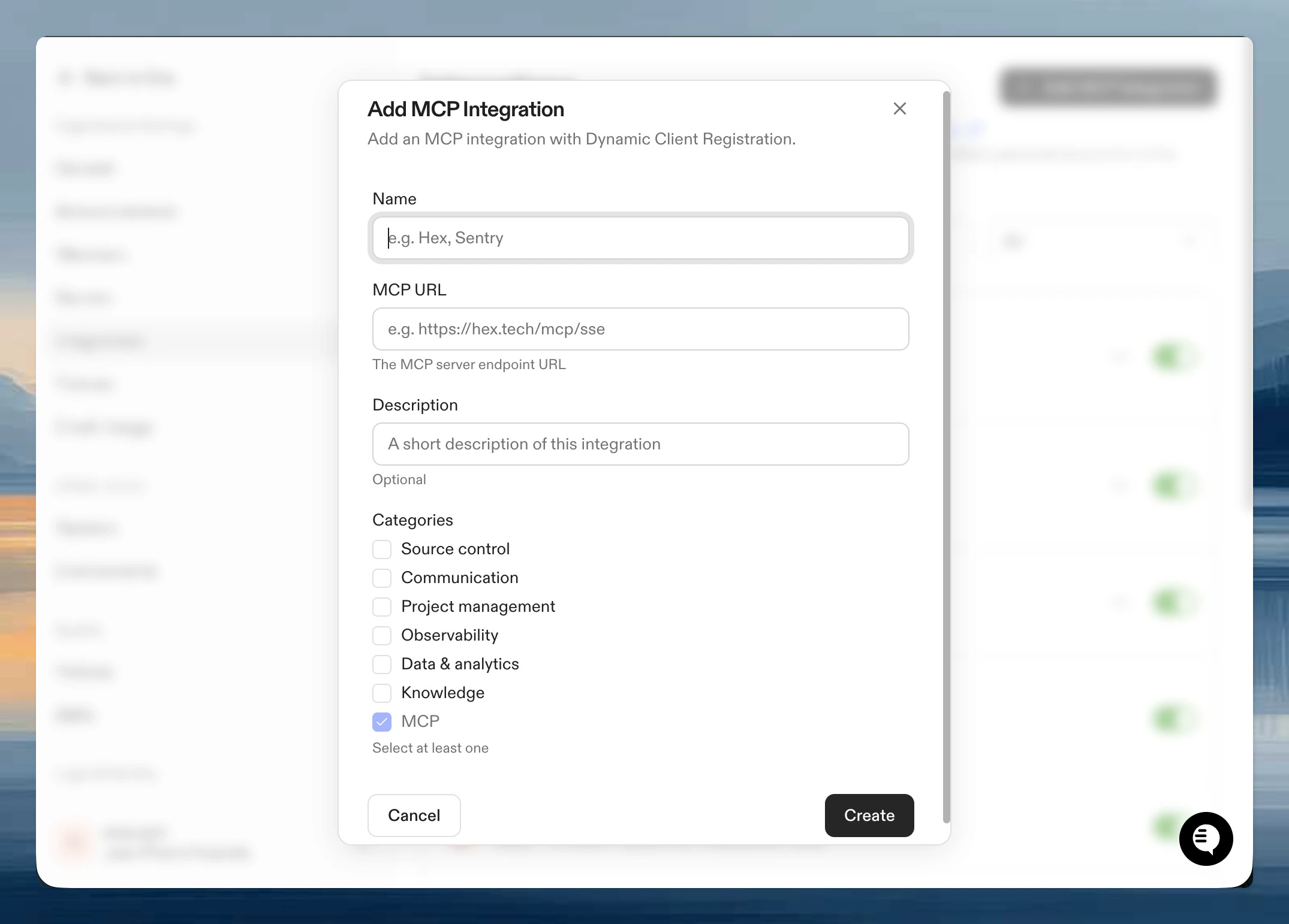

Enter:
- Name: Display name shown to members (for example, Hex)
- MCP URL: The MCP server endpoint (for example, https://hex.tech/mcp/sse)
- OAuth setup: Choose Automatic (DCR) or Manual (see OAuth setup above). Manual reveals additional credential fields.
- Description (optional): Short description shown on the integration card
Click Create

The integration is created disabled. Enable it from the integrations list when you’re ready to make it available to the organization.

Authenticate

Once enabled, each user connects their own account from User Settings > Integrations. Ona kicks off the OAuth flow so the agent acts with the user’s permissions. For automatic integrations, Ona performs DCR against the MCP server on first use; for manual integrations, it uses the client credentials you provided.

Repo-local MCP configuration

Create .ona/mcp-config.json in your repository:

{
  "mcpServers": {
    "github": {
      "name": "github",
      "command": "docker",
      "args": [
        "run", "-i", "--rm",
        "-e", "GITHUB_PERSONAL_ACCESS_TOKEN",
        "ghcr.io/github/github-mcp-server"
      ],
      "env": {
        "GITHUB_PERSONAL_ACCESS_TOKEN": "${exec:printf 'protocol=https\nhost=github.com\n' | git credential fill 2>/dev/null | awk -F= '/password/ {print $2}' 2>/dev/null}"
      },
      "timeout": 30,
      "toolDenyList": ["search_code"]
    },
    "playwright": {
      "name": "playwright",
      "command": "npx",
      "args": ["-y", "@executeautomation/playwright-mcp-server"],
      "timeout": 60
    }
  },
  "globalTimeout": 30
}

Transport types

Each server uses either stdio or HTTP transport. Ona detects the transport from your config:

Set command for stdio transport (runs a local process)
Set url for HTTP transport (connects to a remote endpoint)

A server cannot have both command and url.

Configuration options

Field	Transport	Description
`name`	both	Display name for the server (defaults to the map key)
`command`	stdio	Executable to run the server
`args`	stdio	Command arguments
`url`	HTTP	Server endpoint (must start with `http://` or `https://`)
`headers`	HTTP	HTTP headers sent with requests (supports `${exec:...}` and `${file:...}`)
`env`	stdio	Environment variables (supports `${exec:...}` and `${file:...}`)
`timeout`	both	Per-server timeout in seconds (default: 30)
`toolDenyList`	both	Exact tool names to block
`workingDir`	stdio	Working directory for the server process
`disabled`	both	Set `true` to disable without removing config

Set globalTimeout at the top level of the config to apply a default timeout to all servers.

Checking MCP server status

Click the MCP Integrations button in the session input to see server status. Each server shows whether it is connected, disabled, or experiencing errors.

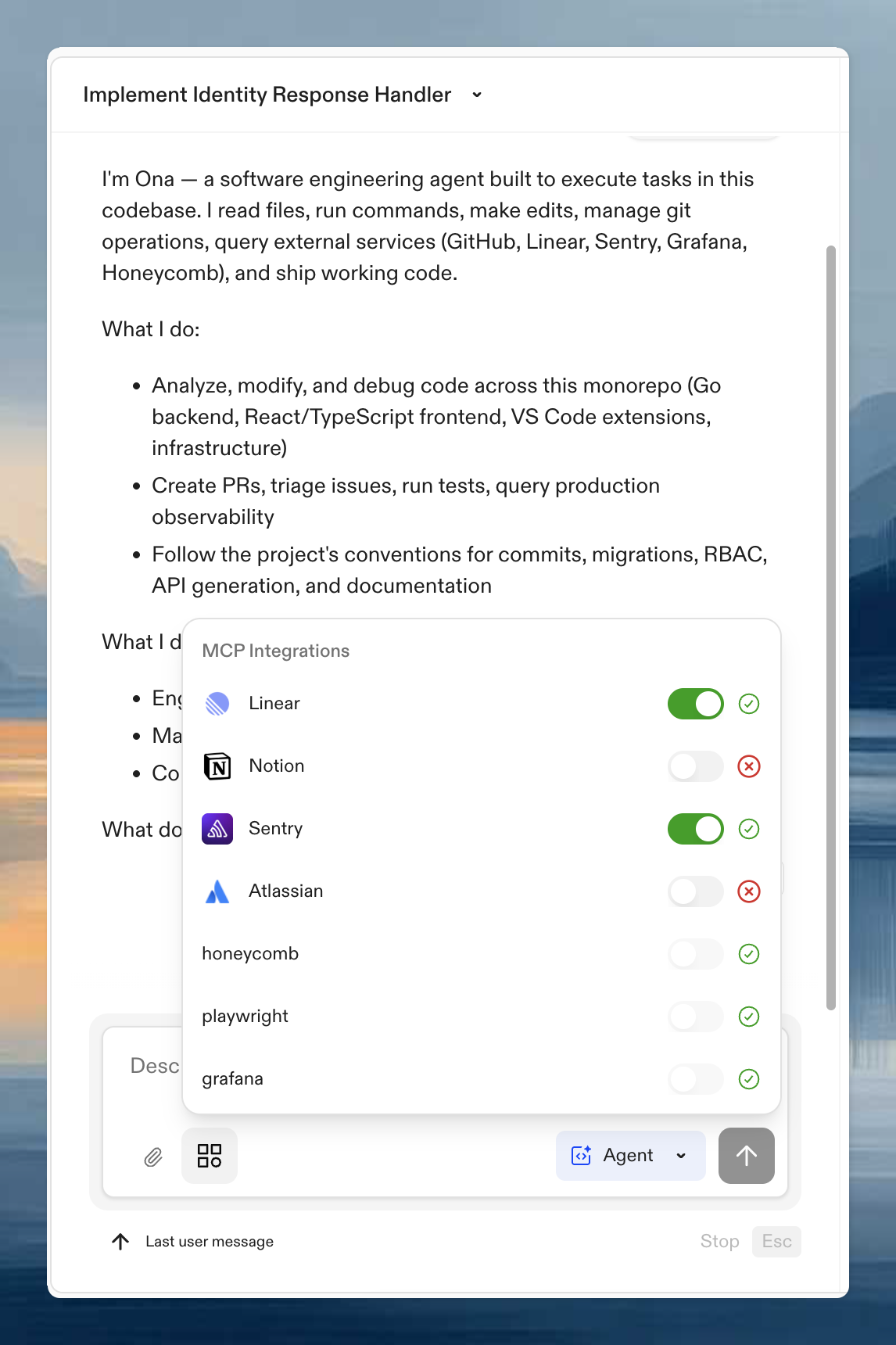

MCP Integrations panel showing available servers with status indicators and error messages

Examples

Stdio transport (local process)

@executeautomation/playwright-mcp-server runs as a local process via npx:

{
  "mcpServers": {
    "playwright": {
      "command": "npx",
      "args": ["-y", "@executeautomation/playwright-mcp-server"],
      "timeout": 60
    }
  }
}

HTTP transport (remote server)

Connect to an MCP server running over HTTP. Use url instead of command:

{
  "mcpServers": {
    "my-remote-server": {
      "url": "https://mcp.example.com/mcp",
      "headers": {
        "Authorization": "Bearer ${exec:printenv MCP_API_TOKEN}"
      },
      "timeout": 60
    }
  }
}

headers supports ${exec:...} and ${file:...} expansion, like env. Inject tokens at runtime instead of committing secrets.

Credentials

Use Ona Secrets to inject credentials into env (stdio) or headers (HTTP):

{
  "env": {
    "API_TOKEN": "${exec:printenv API_TOKEN}",
    "SERVICE_KEY": "${exec:your-secrets-cli get service/key}"
  }
}

For HTTP servers, inject tokens via headers:

{
  "headers": {
    "Authorization": "Bearer ${file:/run/secrets/api-token}"
  }
}

Environment variables: ${exec:printenv VAR_NAME}
Files: ${file:/path/to/secret}
External stores: ${exec:aws secretsmanager get-secret-value ...}

Avoid committing secrets to source control. Provision them at runtime using Ona Secrets.

DevContainer requirements

MCP servers run inside your environment. The base image must include the tools they need (npx for Node-based servers, docker for container-based servers). If a server fails to start, verify the required runtime is in your Dev Container image.

Applying configuration changes

Ona reads MCP configuration once at the start of each agent execution. Changes are not picked up mid-conversation, regardless of whether they are in .ona/mcp-config.json, organization integrations, or the org-level MCP toggle.

Local config (`.ona/mcp-config.json`)

After creating or modifying the file:

Save the file in your workspace
Start a new agent execution: open a new Ona conversation, or wait for the current execution to finish and send a new message

The agent reads the file from your workspace filesystem at the start of each execution. You do not need to rebuild the Dev Container or create a new environment. Commit the file to your repository when you’re ready to share the config with new environments.

Organization integrations (dashboard)

Changes to MCP integrations in Settings > Integrations take effect on the next agent execution. No environment changes are needed.

Organization MCP toggle

Enabling or disabling MCP in Settings > Agents > Policies takes effect on the next agent execution.

Organization controls

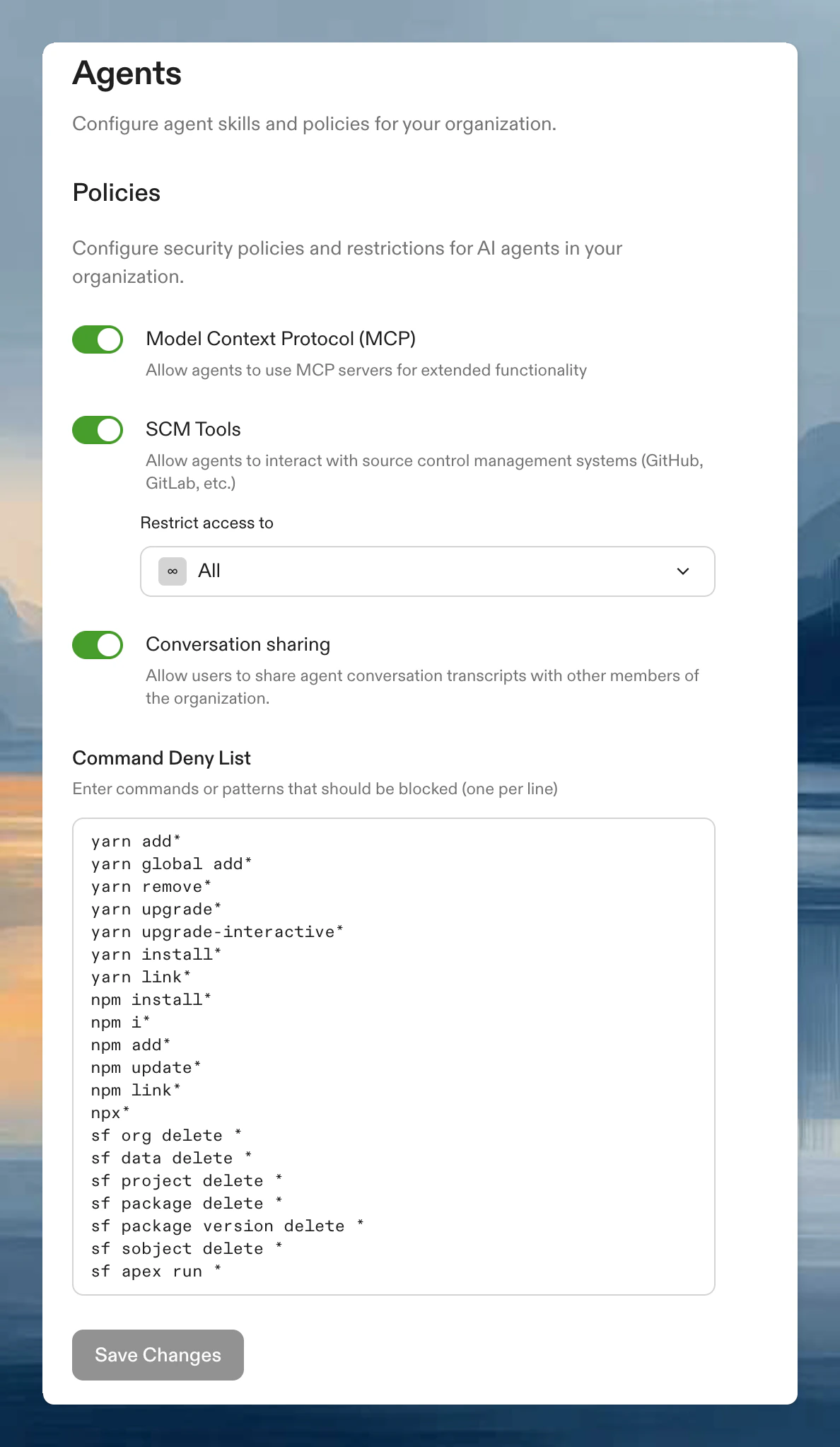

MCP controls toggle in organization settings showing the option to enable or disable MCP servers

Organization owners can disable MCP in Settings > Agents > Policies. When disabled:

.ona/mcp-config.json files are ignored
Agent operates with built-in tools only
External MCP connections are blocked

See Audit logs to review changes.

Troubleshooting

MCP tools not appearing

The agent may not list MCP tools when asked, but can still invoke them. Type /support-bundle in your Ona session to verify servers are connecting.

Configuration errors

If your MCP configuration has syntax errors or invalid server definitions, the agent logs the error and skips the misconfigured server. Check the MCP Integrations panel in the conversation input for error details.
